Ratio Litter Bin
Materials:
Steel, construction material S 235 JR, hot-dip galvanized according to DIN EN ISO 1461 and powder coated in three assembly levels through sweep–blasting, priming and application of a top coat colour DB… iron mica fine structure matt o r RAL …. smooth silk-gloss according to DIN 55633 after category C5 (heavy anti corrosive coating).

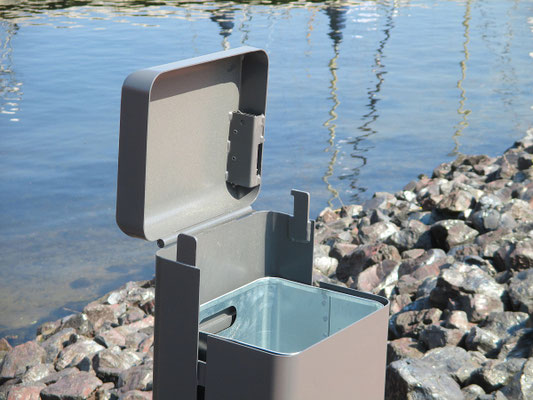

Inner container made from aluminium.
Available measurements in mm:
| Model |
Capacity Ltr. |
Width | Depth | Container Height |
| for embedding | 60 | 350 | 290 | 620 |
| for wall-mounting | 60 | 350 | 290 | 620 |

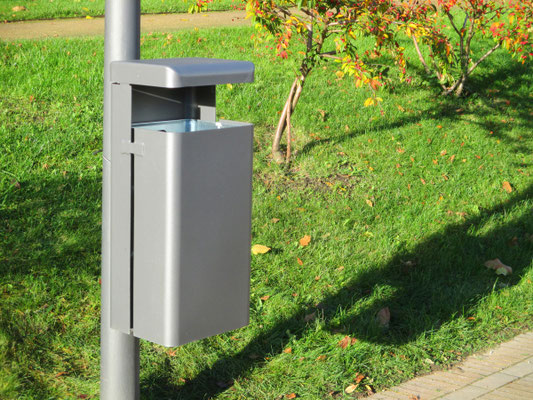

| for pole-mounting | 60 | 350 | 290 | 620 |
| for embedding | 120 | 450 | 350 | 725 |
Options / Accessory:
| - colour coating | |
| - triangular key | |
| - inner container | |
| - clamping ring for plastic bin liners |
Mounting Options:
for 60 ltr.:
- to be embedded in concrete
for 120 ltr.:
- to be embedded in concrete
