Stratos Rubber Grating
Materials:
Steel, construction material S 235 JR, hot-dip galvanized according to DIN EN ISO 1461.
Rubber inserts made from highly refined EPDM.
Available measurements in mm:
| Width | Depth | Grate Height |
Total Height |
Unsupported |
| 500 | 350 | 26 | 30 | yes |
| 600 | 400 | 26 | 30 | yes |
| 700 | 400 | 26 | 30 | yes |
| 800 | 400 | 26 | 30 | no |
| 800 | 400 | 31 | 35 | yes |
| 800 | 500 | 26 | 30 | no |
| 800 | 500 | 31 | 35 | yes |
| 800 | 600 | 26 | 31 | no |
| 800 | 600 | 36 | 40 | yes |
| 900 | 400 | 26 | 30 | no |
| 900 | 400 | 31 | 35 | yes |
| 900 | 500 | 31 | 35 | yes |
| 900 | 600 | 26 | 30 | no |
| 900 | 600 | 36 | 40 | yes |
| 1000 | 400 | 31 | 35 | yes |
| 1000 | 500 | 26 | 30 | no |
| 1000 | 500 | 31 | 35 | yes |
| 1000 | 600 | 26 | 30 | no |
| 1000 | 600 | 36 | 40 | yes |
| 1200 | 500 | 26 | 30 | no |
| 1200 | 500 | 31 | 35 | yes |
| 1200 | 600 | 26 | 30 | no |
| 1200 | 600 | 36 | 40 | yes |
Dimensions are including the angular frame.
Options / Accessory:

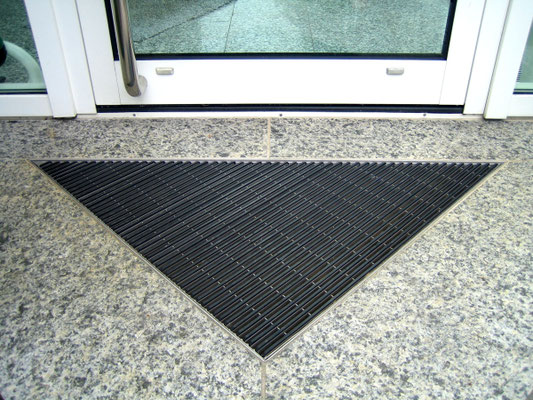

| Any desired size at customer`s option is producible, just as cut-outs, curves or special forms, respectively other materials like stainless steel. | |
| Also available with distance of 5-6 mm and 14-15 mm between rubber inserts. |
Mounting Options:

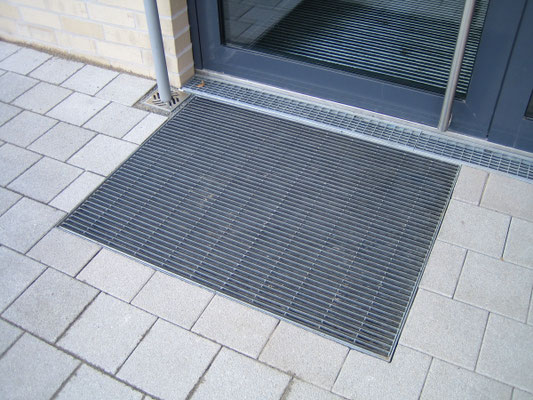

- embedded in concrete
