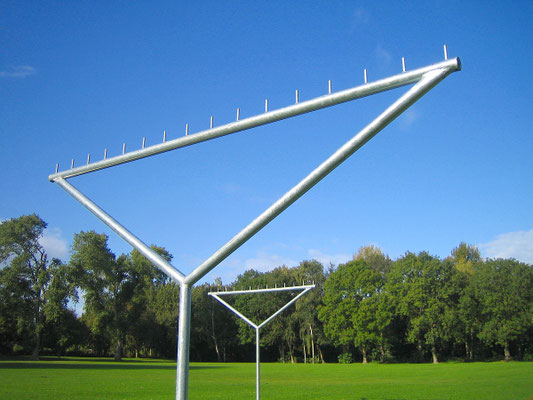

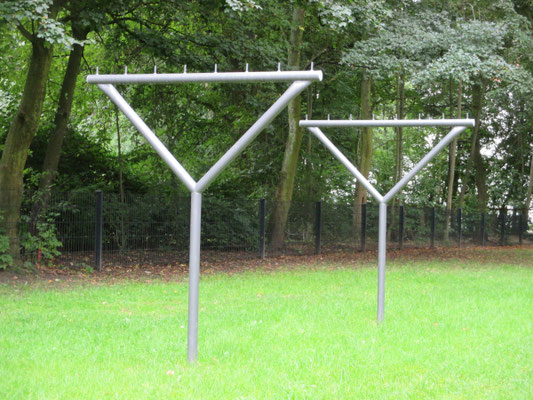

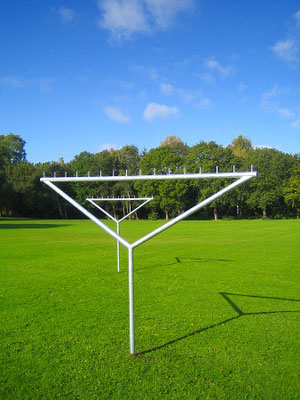

Delta Drying Rack
Materials:
Steel, construction material S 235 JR, hot-dip galvanized according to DIN EN ISO 1461 and powder coated in three assembly levels through sweep–blasting, priming and application of a top coat colour DB… iron mica fine structure matt o r RAL …. smooth silk-gloss according to DIN 55633 after category C5 (heavy anti corrosive coating).
Available measurements in mm:
| Width | Diameter | Pins |
Height ab. Ground |
| 1250 | 48 | 7 | 2000 |
| 1500 | 48 | 8 | 2000 |
| 2000 | 48 | 10 | 2000 |
| 2500 | 48 | 12 | 2000 |
| 3000 | 48 | 14 | 2000 |
| 1250 | 60 | 7 | 2000 |
| 1500 | 60 | 8 | 2000 |
| 2000 | 60 | 10 | 2000 |
| 2500 | 60 | 12 | 2000 |
| 3000 | 60 | 14 | 2000 |
Options / Accessory:
| - colour coating |
Mounting Options:
- embedded in concrete
