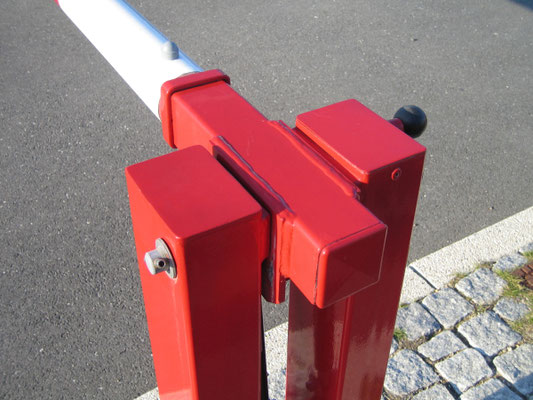

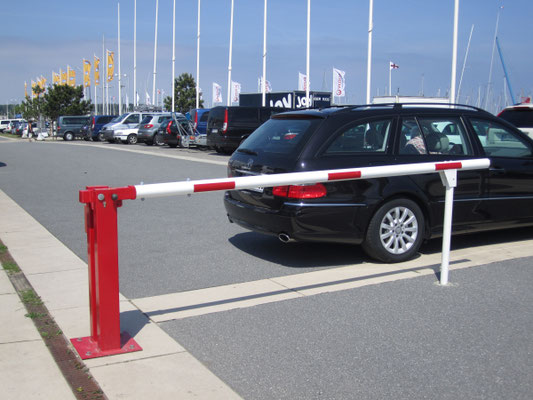

Transit Pendulum Barrier
Materials:
Steel, construction material S 235 JR, hot-dip galvanized according to DIN EN ISO 1461 and powder coated in three assembly levels through sweep–blasting, priming and application of a top coat colour RAL 9010 pure white with 3 pieces red photoluminescent strips o r DB… iron mica fine structure matt o r RAL …. smooth silk-gloss according to DIN 55633 after category C5 (heavy anti corrosive coating).
Available measurements in mm:
| Lock Type | Clear Width |
Height ab. Ground |
| for padlock | 3000 | 950 |
| for padlock | 4000 | 950 |
| for padlock | 5000 | 950 |
| for padlock | 6000 | 950 |
| for padlock | 7000 | 950 |
| triangular op. lock | 3000 | 950 |
| triangular op. lock | 4000 | 950 |
| triangular op. lock | 5000 | 950 |
| triangular op. lock | 6000 | 950 |
| triangular op. lock | 7000 | 950 |
| cylinder lock | 3000 | 950 |
| cylinder lock | 4000 | 950 |
| cylinder lock | 5000 | 950 |
| cylinder lock | 6000 | 950 |
| cylinder lock | 7000 | 950 |
| triangular op. lock and cylinder lock | 3000 | 950 |
| triangular op. lock and cylinder lock | 4000 | 950 |
| triangular op. lock and cylinder lock | 5000 | 950 |
| triangular op. lock and cylinder lock | 6000 | 950 |
| triangular op. lock and cylinder lock | 7000 | 950 |
Options / Accessory:
| - triangular key | |
| - ground sockets | |
| - set of mounting bolts | |
| - cylinder lock with forced closing | |
| - pull rope reinforcement |
Mounting Options:
- embedding
- bolted down
