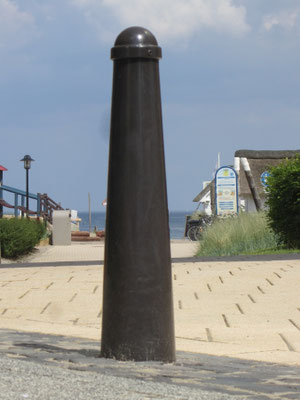

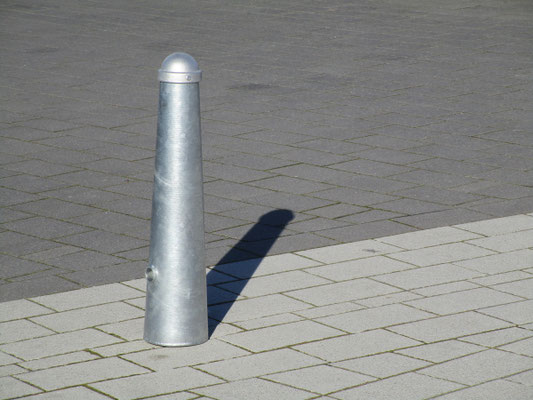

Salut Style Bollard
Materials:
Steel, construction material S 235 JR, hot-dip galvanized according to DIN EN ISO 1461 and powder coated in three assembly levels through sweep–blasting, priming and application of a top coat colour in DB… iron mica fine structure matt o r RAL …. smooth silk-gloss according to DIN 55633 after category C5 (heavy anti corrosive coating).
Available measurements in mm:
| Model |
Diameter bottom |
Height ab. Gound |
| stationary, for embedding | 168 | 750 |
| stationary, for dowelling with base plate | 168 | 750 |
| removable, with triangular key operated lock, for embedding | 168 | 750 |
Options / Accessory:
| - colour coating | |
| - triangular key | |
| - ground socket, steel, galv. for 70 x 70 mm bollards | |
|
- cover for ground cover, spring loaded locking mechanism, for 70 x 70 mm bollards |
Mounting Options:
- for embedding
- for dowelling
