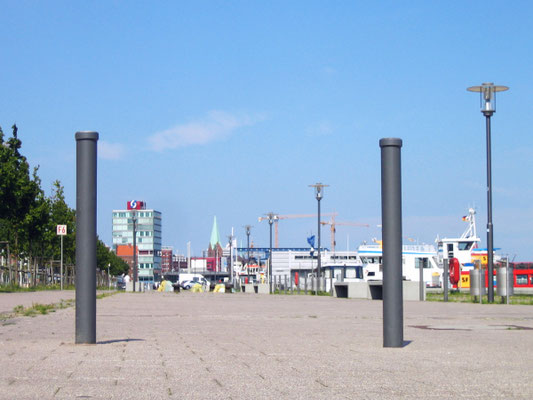

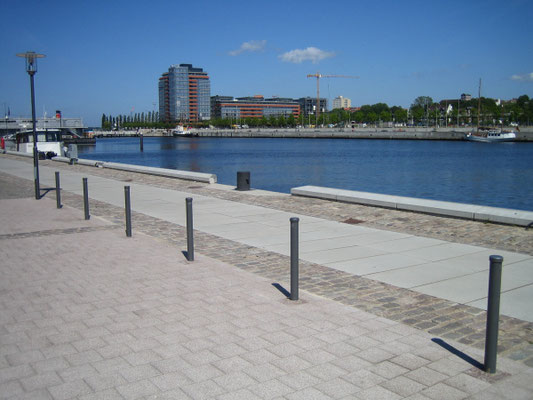

Quai Promenade Post
Materials:
Steel, construction material S 235 JR, hot-dip galvanized according to DIN EN ISO 1461 and powder coated in three assembly levels through sweep–blasting, priming and application of a top coat colour RAL 9010 pure white with 3 pieces red photoluminescent strips o r DB… iron mica fine structure matt o r RAL …. smooth silk-gloss according to DIN 55633 after category C5 (heavy anti corrosive coating).
Available measurements in mm:
| Model | Diameter |
Height ab. Gound |
| stationary, for embedding | 82,5 | 900 |
| stationary, for dowelling with base plate | 82,5 | 900 |
| removable, with triangular key operated lock, for embedding | 82,5 | 900 |
Options / Accessory:
| - colour coating | |
| - triangular key |
Mounting Options:
- for embedding
- for dowelling
